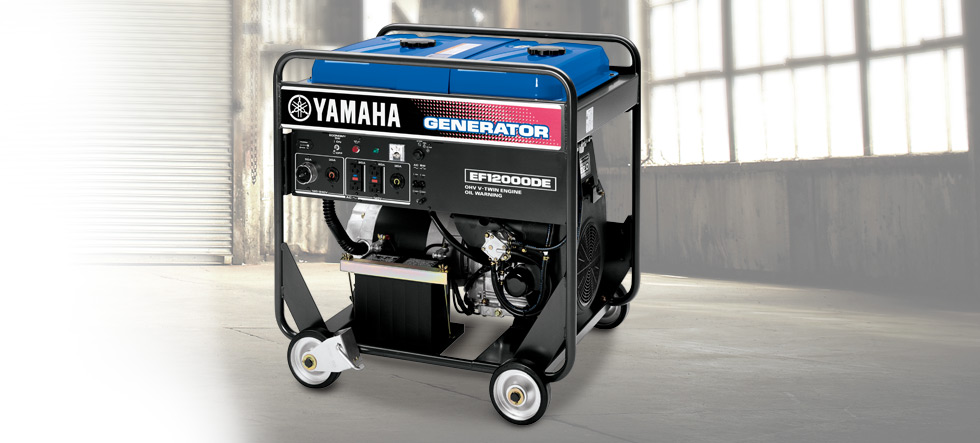

EF12000DE

Specifications:

MSRP*

Black -

Type

Brush, AVR AC Generator

Maximum AC Output

12,000 watts

Rated AC Output

9500 watts

Rated / Maximum AC Current

79.2 / 100.0 amps @ 120V - 39.6 / 50.0 amps @ 240V

Engine

OHV, air-cooled, twin cylinder, 4-stroke

Displacement

653cc

L x W x H

33.3 x 29.6 x 33.3 in

Dry Weight

327.8 lb

Fuel Tank Capacity

11.4 gal

Continuous Operation at Rated Load

8.9 hr

Noise Level

80.0 dBA

Warranty

3 Years Limited Warranty



Top Features:

  • With up to 50 amps 240V and 120/240 dual voltage output, the EF12000DE can handle most anything during a power outage
  • The EF12000DE is our highest output gasoline-powered 120/240- volt output generator
  • It uses a twin-cylinder 653cc, 4-stroke, OHV engine to deliver 12,000 watts maximum AC output with outstanding fuel efficiency
  • It has the convenience of electric starting (battery not included) and its compact size makes it highly portable
  • It provides 8 hours of continuous operation at rated load without refueling to power up super heavy-load equipment like well pumps, air compressors, table saws and more. Great as a backup generator



Features:

  • Dual voltage — Provides the versatility of 120 and 240 volt operation
  • OHV engine (overhead valve) — Precise valve actuation and heavy-duty design offer improved efficiency, increased reliability and quite operation
  • Cast iron cylinder lining — Provides optimal heat dissipation, consistent performance during continuous use and long engine life
  • Oil Watch Warning System — Automatically shuts off before oil level is low and cannot be re-started until oil is added. Prevents engine damage and costly repairs while enhancing long-term durability
  • Auto Voltage Regulation — Guarantees correct power delivery even with extension cords, enhances performance, adds convenience
  • Transistor Controlled Ignition (T.C.I.) — Provides clean, efficient spark that ensures fast, easy starting. Low maintenance, reliable operation
  • Noise suppressor — Reduces electrical interference with TVs and radios
  • Auto decompression — Automatically “opens” exhaust valve slightly to reduce initial back pressure when starting making manual starting effortless
  • USFS-approved spark arrestor — Offers quiet operation and keeps sparks from exiting exhaust system, reducing chance of fires caused by an errant spark
  • GFCI — Ground Fault Circuit Interruption shuts off power when it senses a leak to ground to reduce risk of electric shock
  • Fuel gauge — Lets operator monitor how much fuel is left
  • Electric starter — For convenient ease of operation (Battery NOT included)
  • Economy idle - When there is no load on the generator, it automatically returns to idle for improved fuel efficiency and quieter operation
  • AC non-fuse thermal breaker — Protects AC circuit in case of an overload for added durability and peace of mind
  • Wheel kit Easier service, added value
  • Tool kit— Makes service easier
  • Factory warranty — Covers the entire generator for defects in parts and workmanship for three (3) years
  • Accessory Remote Control — With a 33 ft. cord
  • Accessory Hour Meter/Tachometer — Keep track of running time for service needs
  • Am/Watt Appliance Load Tester — Gives quick, accurate readout of watts or amps used by 120 volt AC electrical devices
  • Yamaha Extended Service — Additional 1, 2 or 3 years of Y.E.S. is available
