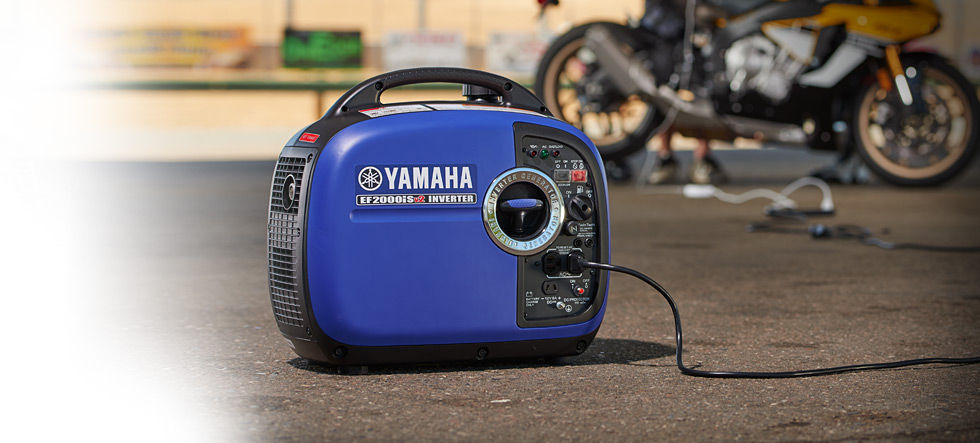

EF2000iS

Specifications

MSRP*

Blue

Type

Inverter

Maximum AC Output

2000 watts

Rated AC Output

1600 watts

Rated / Maximum AC Current

13.3 / 16.7 amps @ 120V

Engine

OHV, air-cooled, single cylinder, 4-stroke

Displacement

79cc

L x W x H

19.3 x 11.0 x 17.9 in

DC Output

8 amps @ 12V

Dry Weight

44.1 lb

Fuel Tank Capacity

1.1 gallons

Continuous Operation at 1/4 Rated Load

10.5 hrs

Noise Level (1/4 Load - Rated Load)

51.5 - 61 dBA

Warranty

3 Years Limited Warranty



Top Features

  • The EF2000iSv2 incorporates a completely new controller with advanced programming resulting in improved output characteristics between 1600w-2000w operation ranges. The addition of the new programming allows the EF2000iSv2 the ability to power a much wider range of applications than previous generation EF2000iS.
  • If you need extra power the EF2000iSv2 has you covered—a convenient parallel function lets you connect two generators to deliver up to 30 amps.
  • The EF2000iSv2 is powerful, portable and retro-modern and delivers maximum output with minimum effort. It weighs a mere 44 pounds, making it easy to transport. Super Light weight for 2000 watts.
  • The EF2000iSv2 is fitted with Yamaha’s most technologically sophisticated muffler. It’s So quiet that you can have a conversation near one and may not realize it is running. (51.5 dBA to 61 dBA – ¼ rated to rated load).
  • It is very compact (2.2 cu.ft.) which makes it easy to store and transport.
  • Long Run Time - The EF2000iSv2 features Smart Throttle, a load sensing rpm control that allows greater fuel efficiency and noise reduction by automatically adjusting engine speed to match the load. It will run up to 10.5 hours at ¼ rated load on a tank of gas.
  • Gasoline petcock lets you shut off the gas to run the carb dry for storage and helps prevent stale gas problems.
  • Fuel gauge allows fuel level to be seen at-a-glance.
  • The Yamaha EF2000iSv2 Inverter generator supplies clean, high quality power. The EF2000iSV2 – with its inverter system – features Pulse Width Modulation (PWM) so voltage stability is within ± 1%, and frequency stability is ± 0.1 HZ. Its pure sine wave is as clean as or cleaner than public utilities power.
  • Yamaha generators have the longest emission engine durability ratings issued by the Environmental Protection Agency and the California Air Resources Board.



Features

  • Light weight — Easy transport
  • Compact — 2.2 cu.ft. size is easy to store and transport
  • Twin Tech (Parallel generator operation) - The EF2000iSv2 can be operated in parallel to deliver up to 30 amps.
  • Parallel generator operation - The EF2000iSv2 may be connected in parallel with an earlier model Yamaha EF2000iS.*
  • New controller with advanced programming - The addition of the new programming allows the EF2000iSv2 the ability to power a much wider range of applications than previous generation EF2000iS.
  • Smart Throttle varies engine speed based on load — Improves fuel economy and reduces noise. Runs up to 10.5 hours at ¼ rated load on a tank of gas.
  • Gasoline petcock - lets you shut off the gas to run the carb dry for storage and helps prevent stale gas problems.
  • Fuel gauge — See fuel gauge at-a-glance
  • Inverter system with Pulse Width Modulation (PWM) control — Produces a pure sine wave to run products with built-in microcomputers or microcomputer-controlled electric tools
  • OHV engine with cast iron cylinder liner — Efficient, reliable, powerful providing long life and excellent heat dissipation
  • OHV engine — Includes steel camshaft and valve train components
  • EPA & CARB Emission Engine Durability Rating — Yamaha generators have the longest emission engine durability ratings issued by the Environmental Protection Agency and the California Air Resources Board
  • Oil Watch Warning system — Prevents engine damage caused by low oil, avoiding costly repairs and minimizing down time, adding customer confidence and peace of mind
  • Auto-decompression system — Reduces compression for easier starting
  • Comfortable grip handle — Easy portability and storage
  • Electrical overload breaker — Prevents generator damage in case of overload
  • Centralized controls — Easy access to controls
  • DC Outlet — 8A 12V outlet for charging batteries (cables included)
  • Rubber vibration isolation feet — Absorbing feet for smooth operation and noise reduction



Available Accessories & Options

  • Sidewinder Parallel Power Cables — Cables allows user to combine the power of two Yamaha EF2000iS Inverter generators. Compatibility with a standard 30A RV cord, rugged over-braided cable design, and a handy Velcro mounting system.
  • TwinTech Cable — Connect two EF2000iS generators in-line with a Twin Tech cable and output for Max 30 AMPs and Rated 25 AMPs of power. Includes standard 30 amp twist-lock receptacle. For RV use, the RV Adapter Kit is required
  • RV Adapter Kit - The RV Adapter Kit has a 30A receptacle for RV use. Required if connecting the Twin Tech Cable to RV.
  • Accessory Cover — Added protection, includes a storage pocket for Owner’s manual, tool kit, and battery charging cables
  • Accessory Hour Meter/Tachometer — Keep track of running time for service needs
  • Am/Watt Appliance Load Tester — Gives quick, accurate readout of watts or amps used by 120 volt AC electrical devices
  • Yamaha Extended Service - Additional 1, 2 or 3 years of Y.E.S. is available
  • For Accessories, visit yamahapartsandaccessories.com
  • *A second Yamaha EF2000iSv2 is recommended to use the full capabilities of this model.
